The Forth Bridge: A Testament to Victorian Engineering Genius
The Forth Bridge, completed in 1890, stands as a testament to the ingenuity and ambition of Victorian engineering. Situated across the Firth of Forth in Scotland, approximately 9 miles west of central Edinburgh, this cantilever railway bridge has been a symbol of Scotland since its completion. In 2015, it was inscribed as a UNESCO World Heritage Site, recognizing its significance in the history of bridge design and construction.
Designed by two prominent English engineers, Sir John Fowler and Sir Benjamin Baker, the Forth Bridge was built to facilitate the growing demand for rail transportation during the Industrial Revolution. With a total length of 2,467 meters, it boasted the world's longest spans (521 meters) upon its opening, a record that would stand until the 20th century.
The Forth Bridge is a prime example of the cantilever truss bridge design, which involves three double-cantilevered spans with suspended central sections. This innovative approach allowed for the construction of longer spans without relying on piers or towers, thereby minimizing disruptions to the waterway below. The bridge's distinctive aesthetic is a result of its forthright and unadorned display of its structural components, showcasing the raw power and elegance of the engineering principles at play.
Constructed primarily of steel, the Forth Bridge was a pioneering example of large-scale steel use in civil engineering. It was the first major structure in Britain to be built from this emerging material, made possible by advances in steel production. In contrast, other contemporary landmarks, such as the Eiffel Tower, relied on wrought iron. The bridge’s innovative design and choice of materials set new standards for durability and safety, contributing significantly to the development of modern steel construction techniques and influencing bridge engineering worldwide.
In addition to its technical achievements, the Forth Bridge also played a significant role in the social and economic development of Scotland. By linking Edinburgh to Fife and connecting the railway network toward Dundee, the bridge facilitated the rapid movement of people and goods, fostering increased trade and cultural exchange between these regions. Today, the Forth Bridge continues to serve as a vital transport link, carrying passengers and freight across the Firth of Forth.
The Forth Bridge's inclusion on the UNESCO World Heritage List underscores its importance as a monument to human ingenuity and technological advancement. As a symbol of Scotland's rich engineering heritage, the bridge stands as a reminder of the nation's contributions to the field of civil engineering and its enduring impact on global infrastructure. Visitors to the Forth Bridge can marvel at the intricate details of its design, appreciate the sheer scale of its construction, and gain a deeper understanding of the challenges faced and overcome by those who dared to build such a remarkable feat of engineering.
UNESCO Description of the World Heritage Site
This railway bridge, crossing the Forth estuary in Scotland, had the world’s longest spans (541 m) when it opened in 1890. It remains one of the greatest cantilever trussed bridges and continues to carry passengers and freight. Its distinctive industrial aesthetic is the result of a forthright and unadorned display of its structural components. Innovative in style, materials and scale, the Forth Bridge marks an important milestone in bridge design and construction during the period when railways came to dominate long-distance land travel.
UNESCO Justification of the World Heritage Site
Criterion (i): The Forth Bridge is a masterpiece of creative genius because of its distinctive industrial aesthetic, which is the result of a forthright, unadorned display of its massive, functional structural elements.
Criterion (iv): The Forth Bridge is an extraordinary and impressive milestone in the evolution of bridge design and construction during the period when railways came to dominate long-distance land travel, innovative in its concept, its use of mild steel, and its enormous scale.
Encyclopedia Record: Forth Bridge
The Forth Bridge is a cantilever railway bridge across the Firth of Forth in the east of Scotland, 9 miles west of central Edinburgh. Completed in 1890, it is considered a symbol of Scotland, and is a UNESCO World Heritage Site. It was designed by English engineers Sir John Fowler and Sir Benjamin Baker. It is sometimes referred to as the Forth Rail Bridge, although this is not its official name.Additional Site Details
Area: 7.5 hectares
Number of Components: 1
(iv) — Outstanding example of a type of building or landscape
Coordinates: 56.0011111111 , -3.3888888889

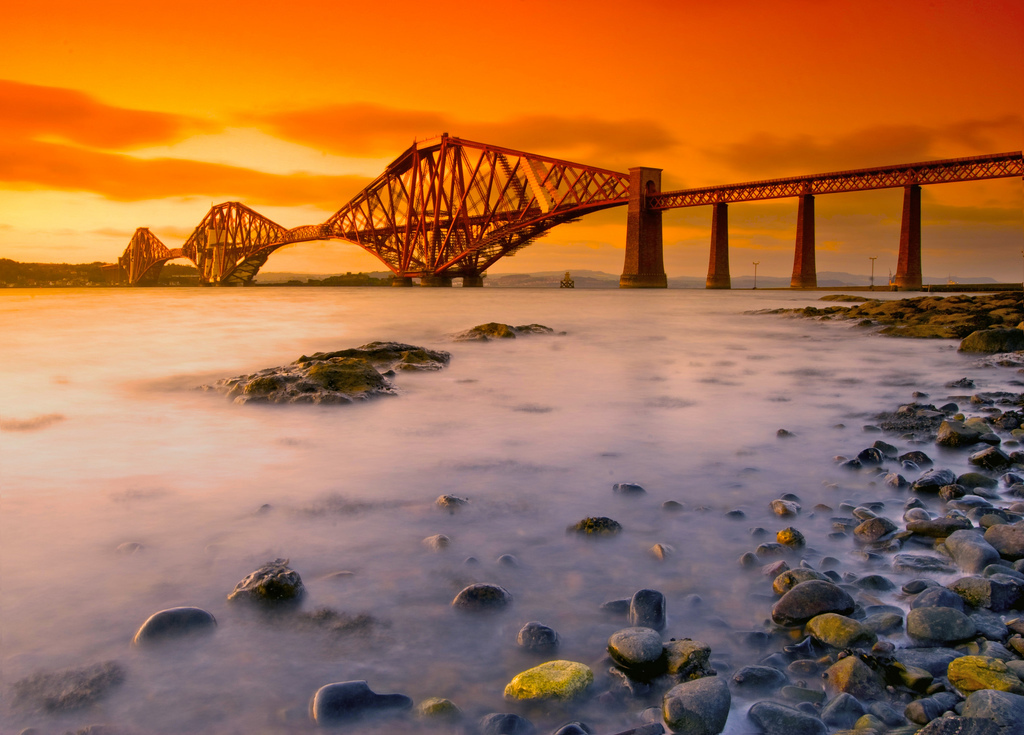

© George Gastin, CC BY-SA 3.0 Resized from original. (This derivative is under the same CC BY-SA license.)
World Heritage Research
Discover scientific research and academic studies that deepen our understanding of The Forth Bridge from its history and significance to its conservation, management, and contemporary challenges.
-
Application of Response Surface-Corrected Finite Element Model and Bayesian Neural Networks to Predict the Dynamic Response of Forth Road Bridges under Strong Winds
Bayesian Neural Networks (BNNs) outperform traditional Finite Element Models (FEMs) in predicting the dynamic response of large-span bridges under strong winds, offering higher accuracy and computational efficiency. A study on the Forth Road Bridge demonstrated that BNNs achieved R² values of 0.9073 for Y-displacement and 0.7969 for Z-displacement, significantly surpassing FEMs (0.6167 and 0.6283, respectively). While BNNs completed predictions in just 20 seconds, FEMs took five hours. However, FEMs provided superior interpretability and comprehensive structural response predictions. The research integrates machine learning with FEMs, leveraging response surface methodology (RSM) and genetic algorithms (GAs), to advance dual-driven approaches for large-scale bridge monitoring under extreme conditions.
Liu, Y., Meng, X., Hu, L., Bao, Y., & Hancock, C. (2024). Application of Response Surface-Corrected Finite Element Model and Bayesian Neural Networks to Predict the Dynamic Response of Forth Road Bridges under Strong Winds. Sensors, 24(7), 2091. https://doi.org/10.3390/s24072091
View Publication Record | Read Publication -
Using Statistical Models and Machine Learning Techniques to Process Big Data from the Forth Road Bridge
A comparative analysis of machine learning techniques revealed that Random Forest outperforms traditional Artificial Neural Networks in predicting strain data from the Forth Road Bridge's Structural Health Monitoring (SHM) system. This study leveraged Principal Component Analysis (PCA) to reduce dataset dimensionality, thereby optimizing computational efficiency, and employed Autoregressive Integrated Moving Average (ARIMA) models for traffic volume predictions. The findings underscore the potential of Random Forest in damage detection and structural response prediction, offering a robust framework for assessing bridge integrity using big data from SHM systems.
Xu, D., Chong, H., Main, I., Mineter, M., De Bold, R., Forde, M. C., Gair, C., Madden, P., Angus, E., & Ho, C. (2019). Using Statistical Models and Machine Learning Techniques to Process Big Data from the Forth Road Bridge. International Conference on Smart Infrastructure and Construction 2019 (ICSIC), 411–419. https://doi.org/10.1680/icsic.64669.411
View Publication Record | Read Publication -
Application of GeoSHM System in Monitoring Extreme Wind Events at the Forth Road Bridge
A two-year monitoring campaign using the GeoSHM system on the Forth Road Bridge revealed significant susceptibility of long-span bridges to wind loads, with extreme events like Storm Ali demonstrating a clear relationship between wind speed and bridge response. The study analyzed data from 2015–2017, highlighting challenges in extracting actionable damage and reliability information for maintenance planning. Supported by the European Space Agency, GeoSHM employed GNSS (Global Navigation Satellite System) and Earth Observation techniques to address gaps in structural health monitoring of critical infrastructure.
Meng, X., Nguyen, D. T., Owen, J. S., Xie, Y., Psimoulis, P., & Ye, G. (2019). Application of GeoSHM System in Monitoring Extreme Wind Events at the Forth Road Bridge. Remote Sensing, 11(23), 2799. https://doi.org/10.3390/rs11232799
View Publication Record | Read Publication -
Design and Implementation of a New System for Large Bridge Monitoring—GeoSHM
A novel system for monitoring the structural health of long-span bridges, GeoSHM, demonstrates significant potential in enhancing safety and integrity through advanced technologies. Utilizing Global Navigation Satellite Systems (GNSS) and Earth Observation (EO), this system was initially tested on the 2.5 km-long Forth Road Bridge in Scotland, with promising results leading to its expansion into a demonstration project involving additional bridges in China. The GeoSHM Demo project, led by UbiPOS UK Ltd., addresses previous limitations and introduces innovative data strategies for processing, storing, and interpreting monitoring data. This study highlights the effectiveness of GNSS and EO technologies in structural health monitoring, offering a robust framework for future infrastructure safety assessments.
Meng, X., Nguyen, D., Xie, Y., Owen, J., Psimoulis, P., Ince, S., Chen, Q., Ye, J., & Bhatia, P. (2018). Design and Implementation of a New System for Large Bridge Monitoring—GeoSHM. Sensors, 18(3), 775. https://doi.org/10.3390/s18030775
View Publication Record | Read Publication -
Vertical Deformation Monitoring of the Suspension Bridge Tower Using GNSS: A Case Study of the Forth Road Bridge in the UK
A study monitoring the vertical deformation of the Forth Road Bridge's southern tower reveals a subsidence rate of approximately 4.7 mm per year, with high precision and minimal uncertainty. The research employed advanced GNSS data processing techniques to analyze 33 months of deformation data, identifying significant seasonal signals linked to thermal effects. A thermal expansion model demonstrated a 98.9% consistency with observed annual signal amplitudes, underscoring the substantial impact of temperature variations on bridge tower deformation. While daily signal amplitudes showed poor correlation with ambient temperature, their phase variations aligned closely post-February 2016. The study also explores the potential influence of the North Atlantic Drift on these signals due to the bridge's unique geographical location. It emphasizes the need for more detailed meteorological and loading data to further investigate deformation mechanisms over time.
Chen, Q., Jiang, W., Meng, X., Jiang, P., Wang, K., Xie, Y., & Ye, J. (2018). Vertical Deformation Monitoring of the Suspension Bridge Tower Using GNSS: A Case Study of the Forth Road Bridge in the UK. Remote Sensing, 10(3), 364. https://doi.org/10.3390/rs10030364
View Publication Record | Read Publication -
Dynamic characteristic of the forth road bridge estimated with GeoSHM
Researchers have successfully used GNSS and Earth Observation technologies to extract dynamic characteristics of the Forth Road Bridge, demonstrating their potential for structural health monitoring. The study revealed that lateral movements are primarily driven by wind loading, while vertical displacements under normal traffic loads can reach 0.3 meters. The first natural frequencies of the bridge's middle span were identified at 0.065 Hz (lateral), 0.15 Hz (longitudinal), and 0.104 Hz (vertical). These findings highlight the effectiveness of GeoSHM in assessing operational conditions, offering a valuable tool for bridge owners.
Meng, X., Xi, R., & Xie, Y. (2018). Dynamic characteristic of the forth road bridge estimated with GeoSHM. The Journal of Global Positioning Systems, 16(1). https://doi.org/10.1186/s41445-018-0014-7
View Publication Record | Read Publication -
Double Crossings: The Tangled Tale of the Forth Road Bridges
The Queensferry Crossing, part of the Forth Road Bridges, stands as a stark contrast to Britain's industrial heritage. This essay highlights the decline of British engineering prowess, questioning why UK firms failed to secure major contracts despite the project's significance. It explores the economic and cultural implications, suggesting that the Queensferry Crossing reflects a broader erosion of Britain's industrial capabilities. The analysis focuses on the comparative aspects between the earlier Forth Road Bridge—British-designed, built, and material—and its successor, underscoring the shift in global engineering dynamics.
Rosie, G. (2018). Double Crossings: The Tangled Tale of the Forth Road Bridges. Scottish Affairs, 27(3), 342–360. https://doi.org/10.3366/scot.2018.0247
